Product Information

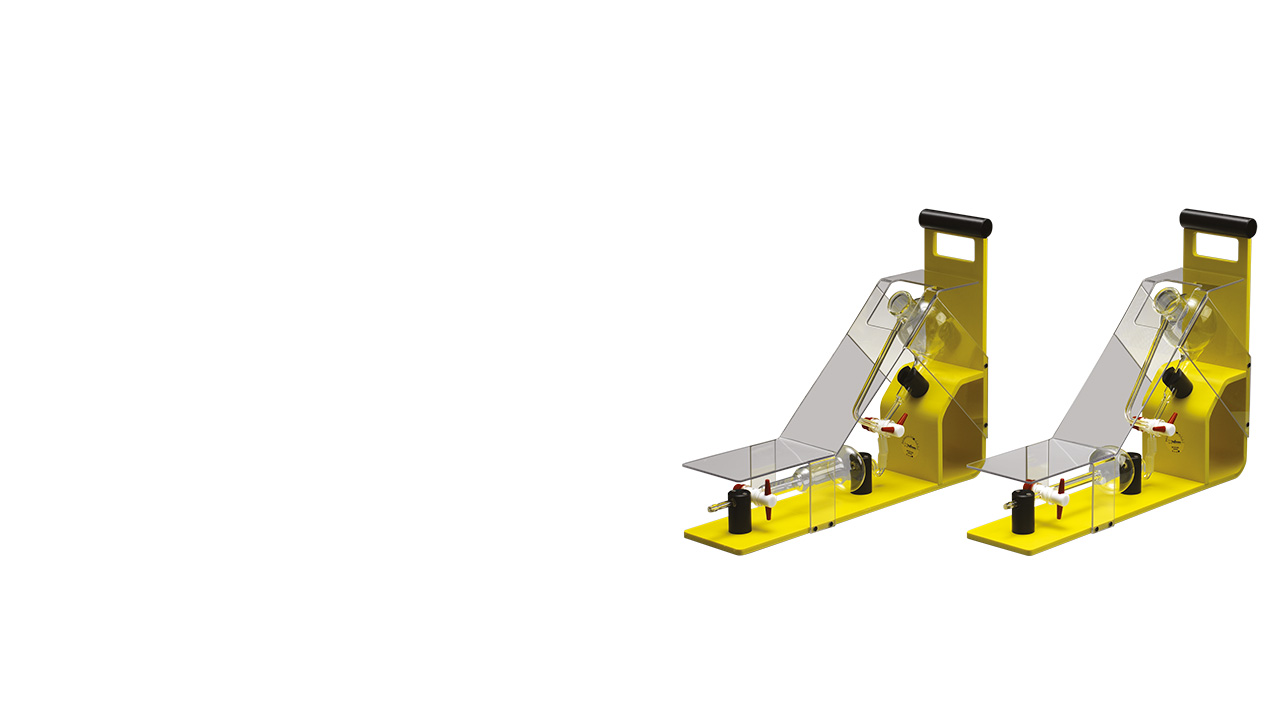

Customers in the beverage industry can use the Pentair CO2 Purity Tester -
Type CPT for routine controls of the air content of commercial CO2
gas and CO2 gas from fermentation
routine controls of the air content of CO2 gas
Customers in the beverage industry can use the Pentair CO2 Purity Tester -Type CPT to ensure the CO2 used in their products is of high quality and free of oxygen, which can impact taste.
Benefits
- Perfect product control
- Cost saving
- less labor intensive
- multiple measurements without the need to remove caustic
-
HOW IT WORKS
-
The measuring burette of the CPT is properly flushed with CO2 gas. The CO2 sample is separated in the measuring burette and the connection is made with the caustic burette. The CO2 is completely absorbed by the caustic and the remaining gas volume is read on the scale of the measuring burette after turning the instrument on its backside.
There are two executions available:
- Type CPT 99-100, measuring burette scale from 99 - 100% v/v, for measuring the end purity of commercial CO2 gas or CO2 gas from fermentation after purification
- Type CPT 50-100, measuring burette scale from 50 - 100% v/v, for measuring the intake purity of CO2 gas from fermentation
-
FIELDS OF APPLICATION
-
In the beer and beverage industry where the quality of C02 is a determining factor in the product quality and taste.
Quality Control
- of gas distribution systems
- of commercial gas
- of incoming CO2 gas from fermentation
- of CO2 recovered and purified from fermentation
- in front of the carbonator to monitor the gas quality dosed
Optimizing CO2 Recovery Plants- behind the activated carbon filter/dryer
- in the purge from the CO2 liquefier to control the blow-off quantity automatically, preventing CO2 loss as well as high concentrations of O2 from dissolving CO2
- behind the CO2 evaporator to monitor O2 in the CO2 distribution system
Downloads
| Title | Download PDF | |
| Product leaflet | Haffmans CO2 Purity Tester - CPT |
Download |
| Product leaflet | Haffmans CO2 Purity Tester - CPT (German) |
Download |
| Product leaflet |
Haffmans CO2 Purity Tester - CPT (French) |
Download |
| Product leaflet |
Haffmans CO2 Purity Tester - CPT (Portuguese) |
Download |
| Product leaflet | Haffmans CO2 Purity Tester - CPT (Spanish) | Download |
| Product leaflet | Haffmans CO2 Purity Tester - CPT (Russian) | Download |
| Product Overview Brochure |
Haffmans Quality Control Equipment | Download |
| Technical documentation |
Looking for operating instructions, installation manual, spare part list etc.? | Please, send us your request |
