PRODUCT INFORMATION

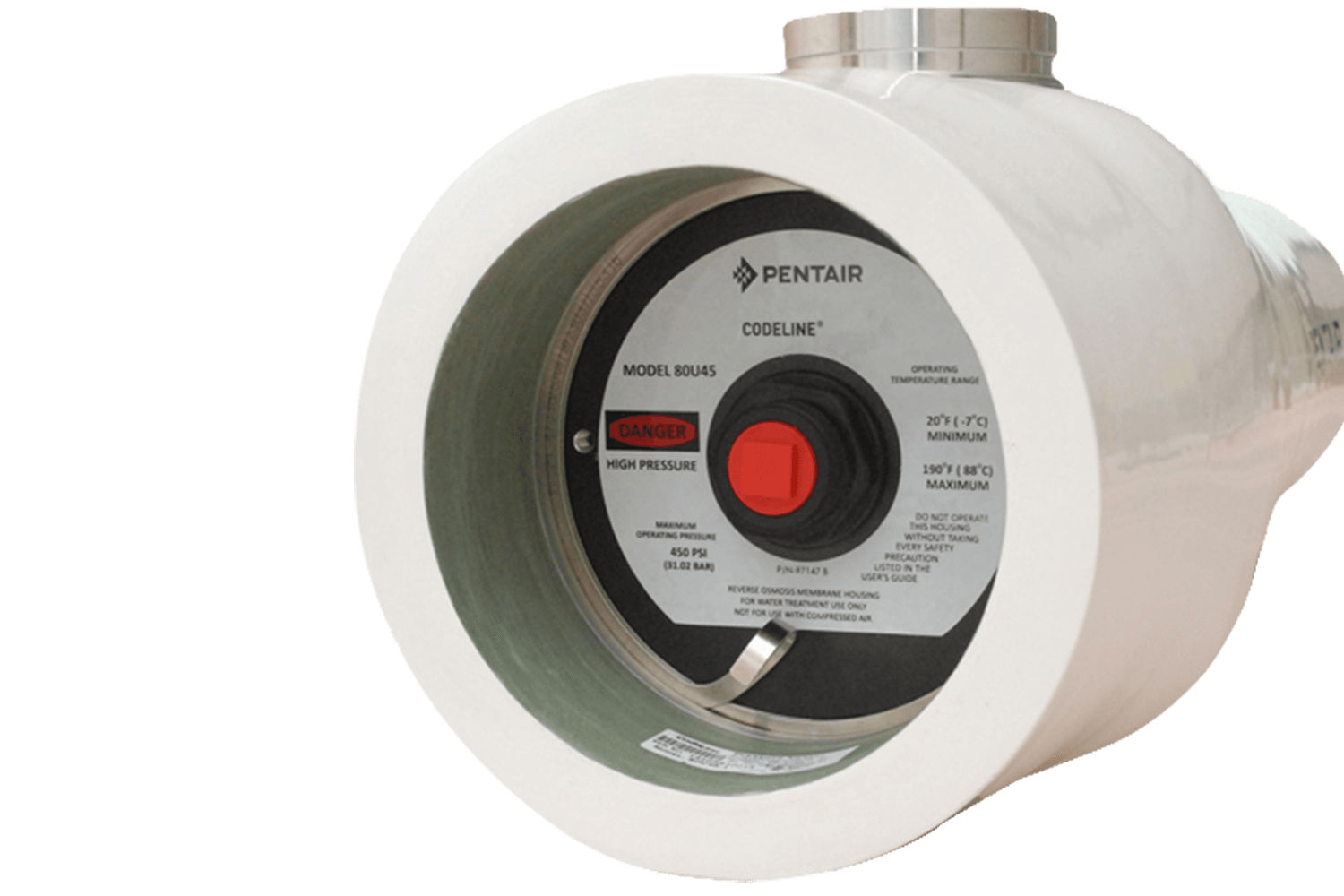

Codeline OCTA 80U is membrane housing series of 8” diameter with side entry design with OCTA Technology. This is used for ultra-high feed flow commercial, municipal and industrial RO applications. Vessel models are available in operating pressure of 300 PSI, 450 PSI, 600 PSI with multiport connectivity. These are made up of epoxy/ glass composite to meet the demands of long term and continuous use in RO processes. Codeline 80U vessels can accommodate any standard 8” membrane element.
Code compliant head
Multiporting
Quick lock system
Threaded side port
Flat sealing
Fail safe shell
High gloss exterior paint
- med1
- med2
- med3
- med4
- med5
- med6
- med7
FEATURES
- Mirror finish ID for easy and quick loading and unloading of membranes
- Multi-porting option available with 3.0” and 4.0” IPS grooved feed/ concentrate ports for connecting vessels to each other
- Quick lock head retention system for quick access to membranes
- Exteriors coated with high-gloss polyurethane paint for UV resistance
- Captured head seal prevents roll during head assembly fitting
- Compatible for using in brackish and high brackish applications for respective pressure ratings
- Available in code-compliant models only
- ASME and CE certified
-
UNIQUE BENEFITS
-
THE 80U MEMBRANE HOUSING HAS 6 UNIQUE BENEFITS
- Minimized leakage: The integrated octagonal shape provides a flat surface for superior and reliable side port sealing
- Easy service and maintenance: The threaded side ports are easy to mount and allow for quick & easy on-site maintenance and replacements
- Quick locking mechanism: The user-friendly quick lock system eliminates the need for special removal tools and allows quick access to the membranes
- Improved head sealing: Integration into the sealing plate provides better sealing and avoids head seal roll, eliminating head leaks
- Integrally wound locking groove: enhanced end-margin strength for better performance.
- Flexibility in permeate piping: Customization of the standard permeate ports for flexible water flows is available for specific requirements
- Minimized leakage: The integrated octagonal shape provides a flat surface for superior and reliable side port sealing
-
PARTS OVERVIEW
-
EXPLODED VIEW
The membrane housing of the 80U series is shown in the exploded view below. The parts table contains an explanation of the numbers.
Clicking on the enlargement opens a PDF file containing both the exploded view and the parts table.
PARTS TABLE
-
SPECIFICATIONS
-
CODELINE 80U120
CODELINE 80U30
CODELINE 80U45
CODELINE 80U60 Drawing no. 99188
99021
99189
99186
Design/ Max. operating pressure 1200 PSI/83 Bar 300 PSI/20 Bar
450 PSI/31 Bar
600 PSI/41 Bar
Max. operating temperature 1500F/660C
190°F/ 88°C
190°F/ 88°C
190°F/ 88°C
Qualifaction pressure 7200 PSI/497 Bar
1800 PSI/124 Bar
2700 PSI/186 Bar 3600 PSI/248 Bar
Element length 1-8 1-8
1-8
1-8 Download adapter list DOWNLOAD DOWNLOAD DOWNLOAD DOWNLOAD Download datasheet DOWNLOAD DOWNLOAD DOWNLOAD DOWNLOAD Download drawing DOWNLOAD DOWNLOAD DOWNLOAD DOWNLOAD Quality: read more about our quality certificates.
Multiporting: learn more about multiporting with Codeline pressure vessels
Older products: click here for more information about older Codeline products.
User Guides: click here for all the Codeline User Guides.
