PRODUCT INFORMATION

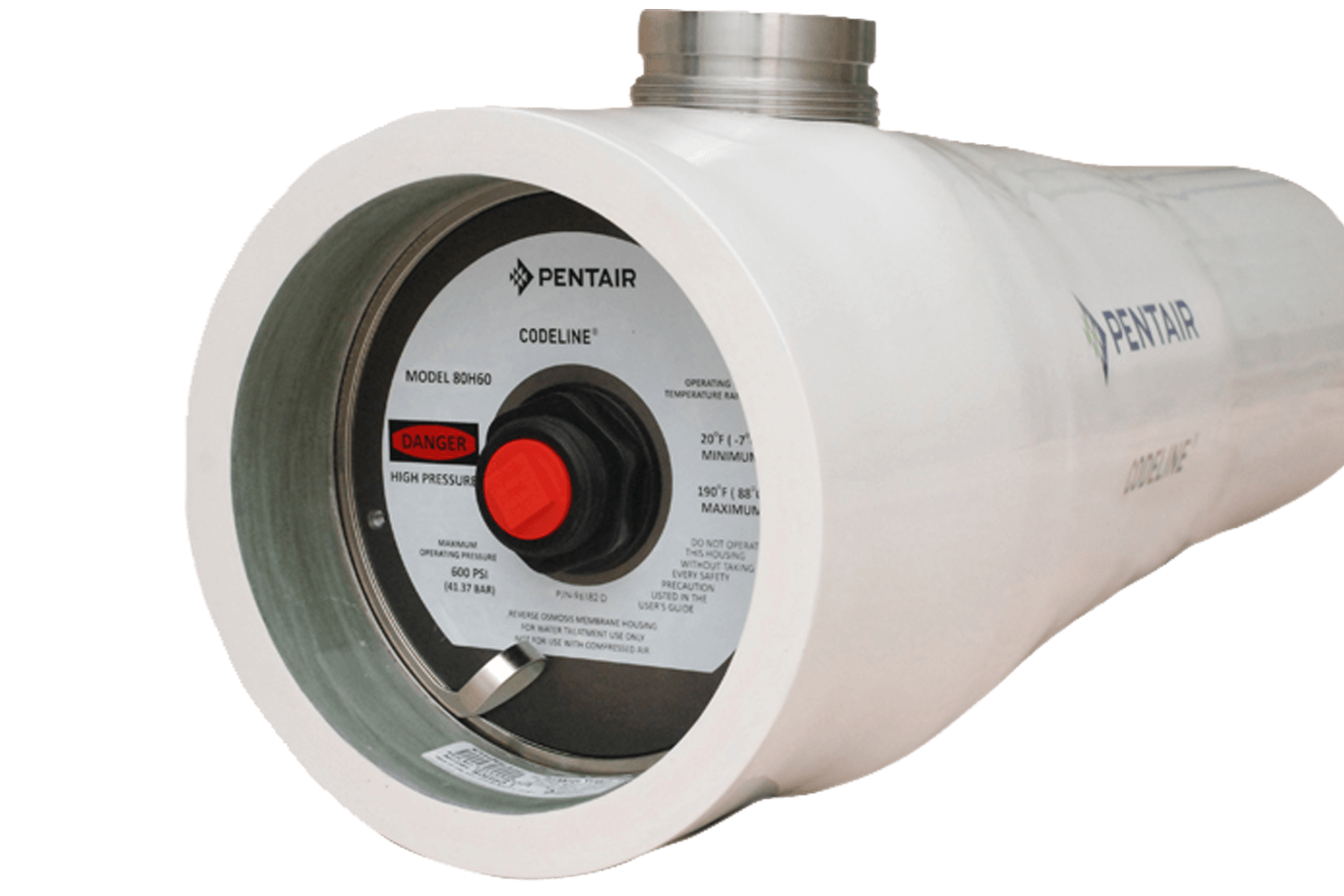

Codeline OCTA 80H is membrane housing series of 8” diameter with side entry design equipped with OCTA Technology. This is used for high feed flow commercial, municipal and industrial RO applications. Vessel models are available in operating pressure of 150 PSI, 300 PSI, 450 PSI, 600 PSI, 1000 PSI and 1200 PSI with multiport connectivity. These are made up of epoxy/ glass composite to meet the demands of long term and continuous use in RO processes. Codeline 80H vessels can accommodate any standard 8” membrane element.
Code compliant head
Fail safe shell
Flat sealing
Multiporting
Quick lock system
Threaded side port
- med1
- med2
- med3
- med4
- med5
- med6
FEATURES
- Mirror finish ID for easy and quick loading and unloading of membranes
- Multiporting option available with 1.5”, 2.0”, 2.5” and 3.0” diameters for connecting vessels to each other
- Quick lock head retention system for quick access to membranes
- Exteriors coated with high-gloss polyurethane paint for UV resistance
- Head seal is captured, hence doesn’t roll during head assembly fitment
- Compatible for using in brackish, high brackish and sea water applications for respective pressure ratings
- ASME, NSF and CE certified
-
UNIQUE BENEFITS
-
THE OCTA 80H MEMBRANE HOUSING HAS 6 UNIQUE BENEFITS
- Minimized leakage: The integrated octagonal shape provides a flat surface for superior and reliable side port sealing
- Easy service and maintenance: The threaded side ports are easy to mount and allow for quick and easy on-site maintenance and replacements
- Quick locking mechanism: The user-friendly quick lock system eliminates the need for special removal tools and allows quick access to the membranes
- Improved head sealing: Integration into the head/sealing plate provides better sealing and avoids head seal roll, eliminating head leaks
- Integrally wound locking groove: enhanced end-margin strength for better performance
- Flexibility in permeate piping: Customization of the standard permeate ports for flexible water flows is available for specific requirements
- Minimized leakage: The integrated octagonal shape provides a flat surface for superior and reliable side port sealing
-
PARTS OVERVIEW
-
EXPLODED VIEW
The membrane housing of the 80H series is shown in the exploded view below. The parts table contains an explanation of the numbers. Clicking on the picture opens a PDF file containing both the exploded view and the parts table.
PARTS TABLE
-
SPECIFICATIONS
-
CODELINE 80H15
CODELINE 80H30
CODELINE 80H45
CODELINE 80H60 CODELINE 80H100 CODELINE 80H120 Drawing no. 99165
99166
99167
99168
99169
99170 Design/ Max. operating pressure 150 PSI/10 Bar
300 PSI/20 Bar
450 PSI/31 Bar
600 PSI/41 Bar
1000 PSI/ 68 bar
1200 PSI/82 Bar Max. operating temperature 190°F/ 88°C
190°F/ 88°C
190°F/ 88°C
190°F/ 88°C
150°F/ 66°C
150°F/ 66°C Qualifaction pressure 900 PSI/62 Bar 1800 PSI/124 Bar
2700 PSI/186 Bar 3600 PSI/248 Bar
6000 PSI/413 Bar 7200 PSI/496 Bar Element length 1-8 1-8
1-8
1-8 1-8 1-8 Download adapter list DOWNLOAD DOWNLOAD DOWNLOAD DOWNLOAD DOWNLOAD DOWNLOAD Download datasheet DOWNLOAD DOWNLOAD DOWNLOAD DOWNLOAD DOWNLOAD DOWNLOAD Download drawing DOWNLOAD DOWNLOAD DOWNLOAD DOWNLOAD DOWNLOAD DOWNLOAD Quality: read more about our quality certificates.
Multiporting: learn more about multiporting with Codeline pressure vessels
Older products: click here for more information about older Codeline products.
User Guides: click here for all the Codeline User Guides.
