PRODUCT INFORMATION
Pentair X-Flow R100 microfiltration Membrane Element is an excellent choice for the filtration of still and sparkling wines, wine must, juices, milk, vinegar and beer. The Pentair X-Flow R100 Membrane Element is known for its added value in product quality and taste, production costs, and environmental impact.

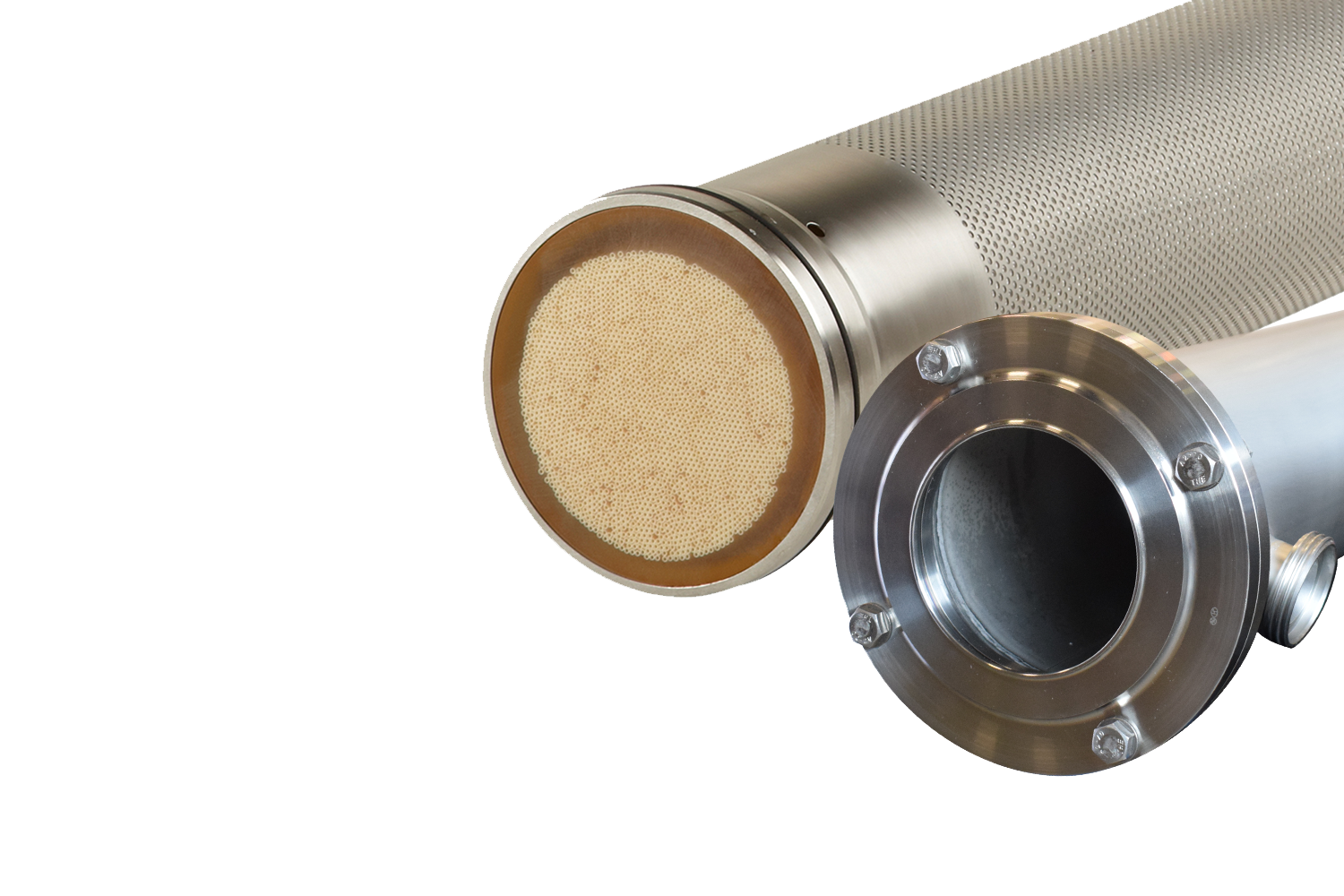

R100 insert
R100 housing
- med1
- med2
FEATURES
- Hollow Fibre Microfiltration technology
- The fibres are manufactured from polyethersulphone
- Surface properties allow greater control of colloid retention in wine compared to kieselguhr
- Reduces yeast and bacteria to less than 1 cell/100 ml
- Reduces turbidity level to less than 1 NTU
- Pore size of 0.2 - 0.8 micron
- Unique asymmetric pore structure results in better back flush efficiency
- Suitable up to 80 degrees Celsius
-
FUNCTIONAL DESCRIPTION
-
Pentair X-Flow R100 Membrane Elements are usually racked in a skid (standard unit) of 2 -12 Membrane Elements. The permeate flow ranges between 200-800 liter per hour per membrane element, which amounts to 0.5 -10 m3 per hour per skid. The mode of operation is batch-wise, continuous operation by alternation between two or more skids, or cascade systems.
-
FIELDS OF APPLICATION
-
The Pentair X-Flow R100 microfiltration membrane element is ideal when it comes to sanitary and high temperatures applications.
The R100 Membrane Element is an excellent choice for the filtration of still and sparkling wines, wine must, juices, milk, vinegar and beer.
SPECIFICATIONS
| R100 MF02/1.5MM | R100 MF02/3.0MM | R100 MF08/1.5MM | |
| Surface area | 9 m2 | 5 m2 | 9 m2 |
| Dimensions (dxl) | Approx. 160 X 1,020 mm | Approx. 160 X 1,020 mm | Approx. 160 X 1,020 mm |
| Housing material | Stainless steel | Stainless steel | Stainless steel |
| Material | Polyethersulphone | Polyethersulphone | Polyethersulphone |
| Diameter | 1.5mm | 3.0mm | 1.5mm |
| Pore size | 0.2 µm | 0.2 µm | 0.8 µm |
| pH-range | 1 -13 | 1 -13 | 1 -13 |
| Chlorine resistance | 500 ppm max 250,000 ppm.h | 500 ppm max 250,000 ppm.h | 500 ppm max 250,000 ppm.h |
Connection configurations: to learn more about other Pentair X-Flow Membrane Elements and their connection configurations, please click here.
